Links¶

A link connects two nodes and visualizes the traffic between them. Each link has two sides — A and Z — so it can show bidirectional flow (A → Z outbound, Z → A inbound).

Open Panel options → Links, select a link from the dropdown, or click Add Link.

A / Z sides and endpoints¶

A Side / Z Side — the two nodes the link connects.
Each side has its own query, bandwidth, anchor, and labels, so inbound and outbound can be independent.

Anchor Point controls where the link attaches to a node (Center, Top, Bottom, Left, Right) — useful for routing links cleanly around a busy map.

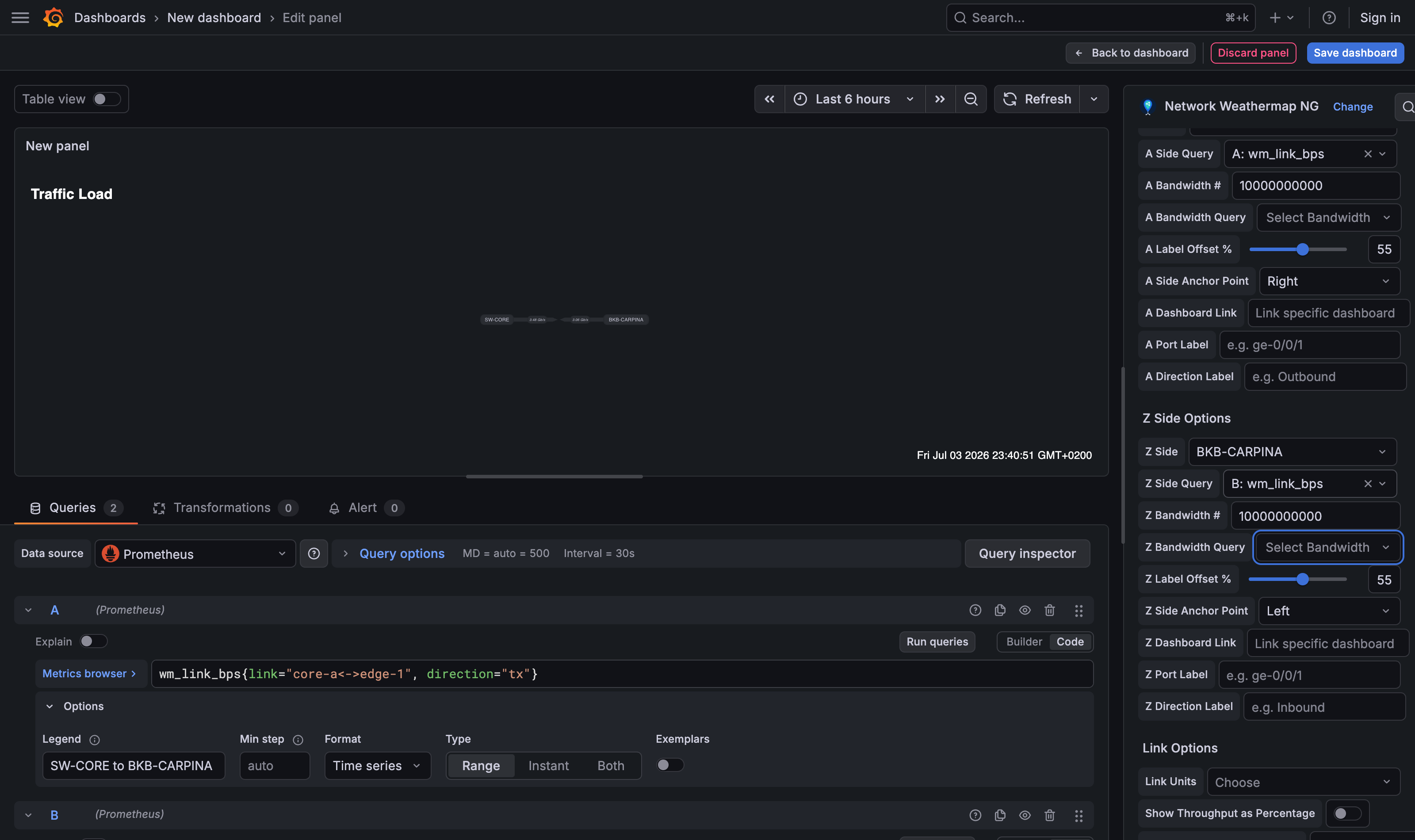

Link editor: A and Z side options with queries and bandwidth

The full per-side form: side node, side query, fixed bandwidth (10 Gbps here), label offset, anchor point, dashboard link, port label, and direction label.

Queries and bandwidth¶

For each side:

Field	Purpose
Side Query	The series whose value drives this side's color/label (e.g. bits sent).
Bandwidth #	A fixed capacity (e.g. `20000000000` for 20 Gbps) so utilization can show as a percentage.
Bandwidth Query	Use a series for capacity instead of a fixed number (e.g. interface speed).

With bandwidth set, the tooltip and coloring can express throughput % (current ÷ bandwidth), which is how the color scale bands are matched by default.

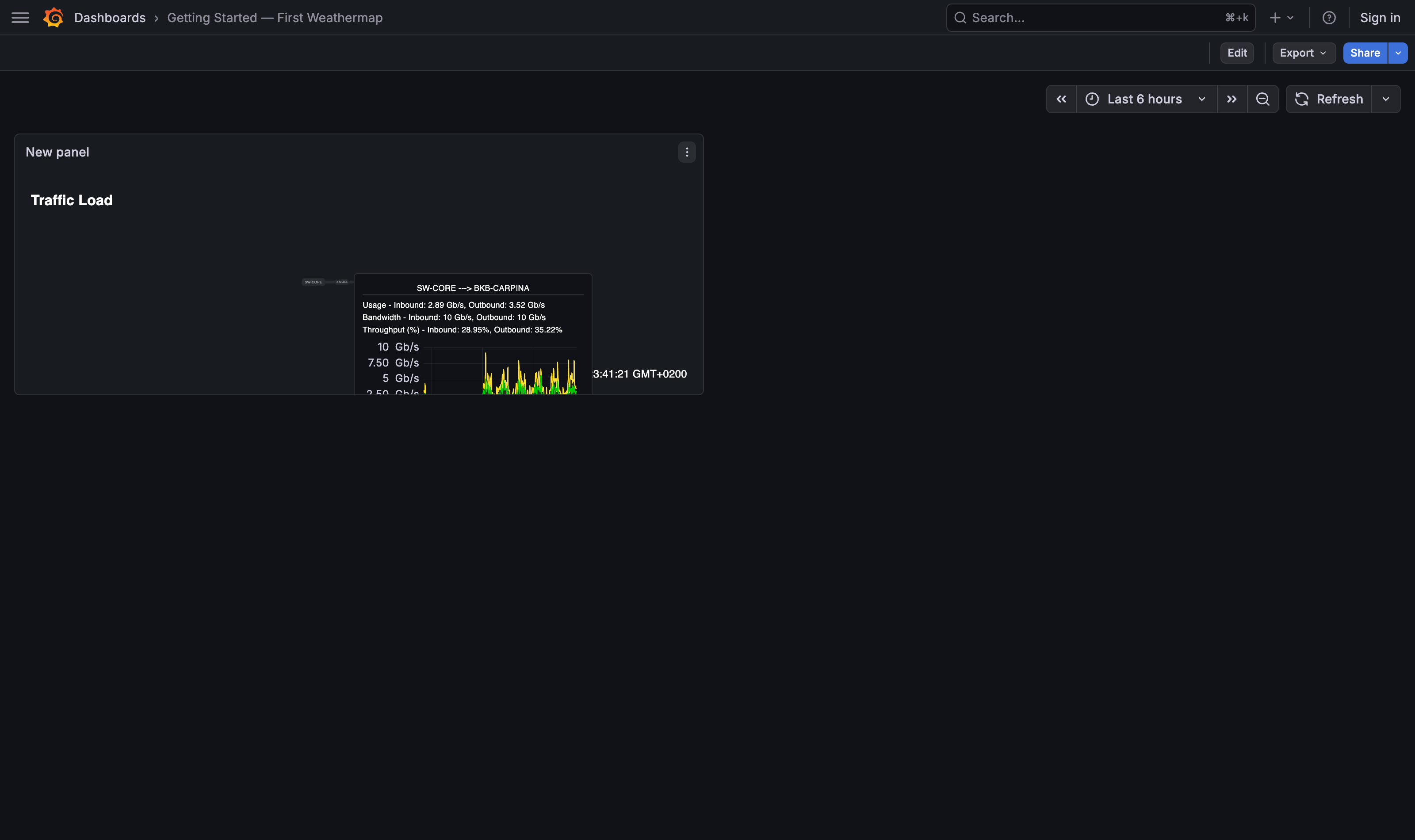

Hover tooltip showing usage, bandwidth and throughput percent

Units and decimals¶

Link Units — a per-link unit formatter (bps, Bps, packets/s, …). Falls back to the panel's Default Link Units.
Link Value Decimal Places (panel option) — fixes the number of decimals on all link labels; leave blank for automatic precision.

Labels and label offset¶

Label Offset — slide the value text along the link (0–100%). Handy when two labels overlap.
Port Label — a per-side interface name (e.g. ge-0/0/1) rendered next to the link at 25% from each endpoint, rotated to follow the line.
Port Label Offset % — slide a port label along the link axis (−50…50). 0 (default) keeps the position above; positive moves it toward the midpoint, negative toward the node.
Port Label Distance — move a port label perpendicular to the link line (−30…60 px). 0 (default) keeps the current distance; positive pushes it further from the line, negative brings it closer or across. Between the two you can lift a label clear of a node icon, an arrow, or a parallel link.

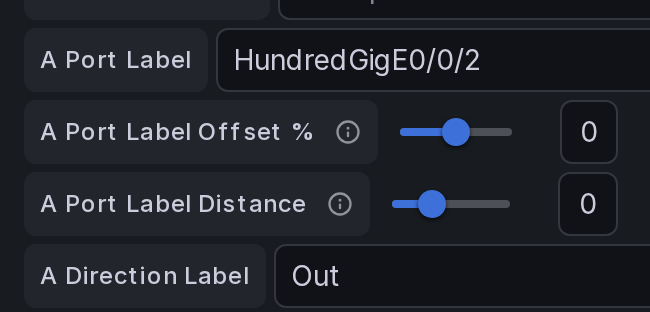

Positioning a port label:

Edit the panel → open Links and select a link from the dropdown.
Under A Side Options / Z Side Options, set the Port Label, then use the two sliders: Port Label Offset % (along the link) and Port Label Distance (away from the link).
Save the dashboard — the label sits where you placed it.

Label overlapping a node?

Port labels sit ~25% from each endpoint, so on dense maps they can overlap the node icon or its label. Nudge Offset % positive (toward the midpoint, away from the node) and/or Distance to lift it off the icon.

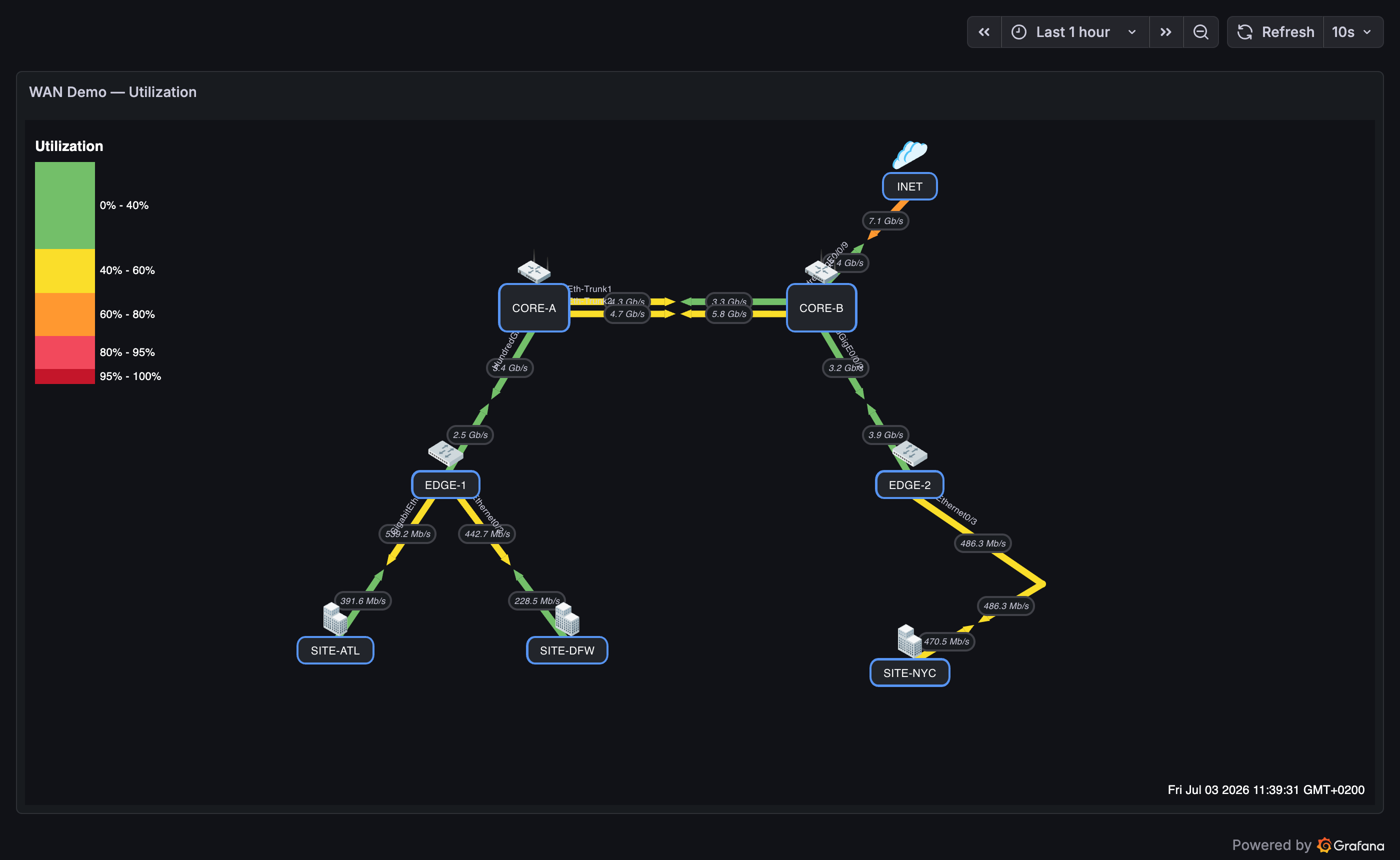

WAN map with port labels and direction labels on links

Port labels (interface names near each endpoint) and value labels on a live WAN map — from the demo dashboards.

Direction labels (inbound / outbound)¶

By default the tooltip labels values as generic Inbound / Outbound. Set an explicit Direction Label per side (e.g. TX-UPLINK, RX-DOWNLINK, To WAN) and the tooltip uses your wording instead — removing the implicit A/Z ambiguity. Because each value is labeled by its own side, the naming stays correct no matter which side you hover.

Leave the fields blank to keep the classic Inbound/Outbound behavior.

Arrow meeting point¶

The two directional arrows meet at the midpoint of a link by default. Use the Arrow Meeting Point (%) slider (Link Options) to shift where they meet — lower values move the junction toward the A side, higher toward Z. Great for asymmetric links and for maps that use VIAs.

Waypoints (polyline links)¶

By default a link is a straight line. Add waypoints (Link Options → Waypoints (Polyline)) to draw it as a polyline — one logical link bent through any number of intermediate points, without splitting it into segments the way VIAs do. Ideal for routing many links around each other or tracing a real geographic path on a map background.

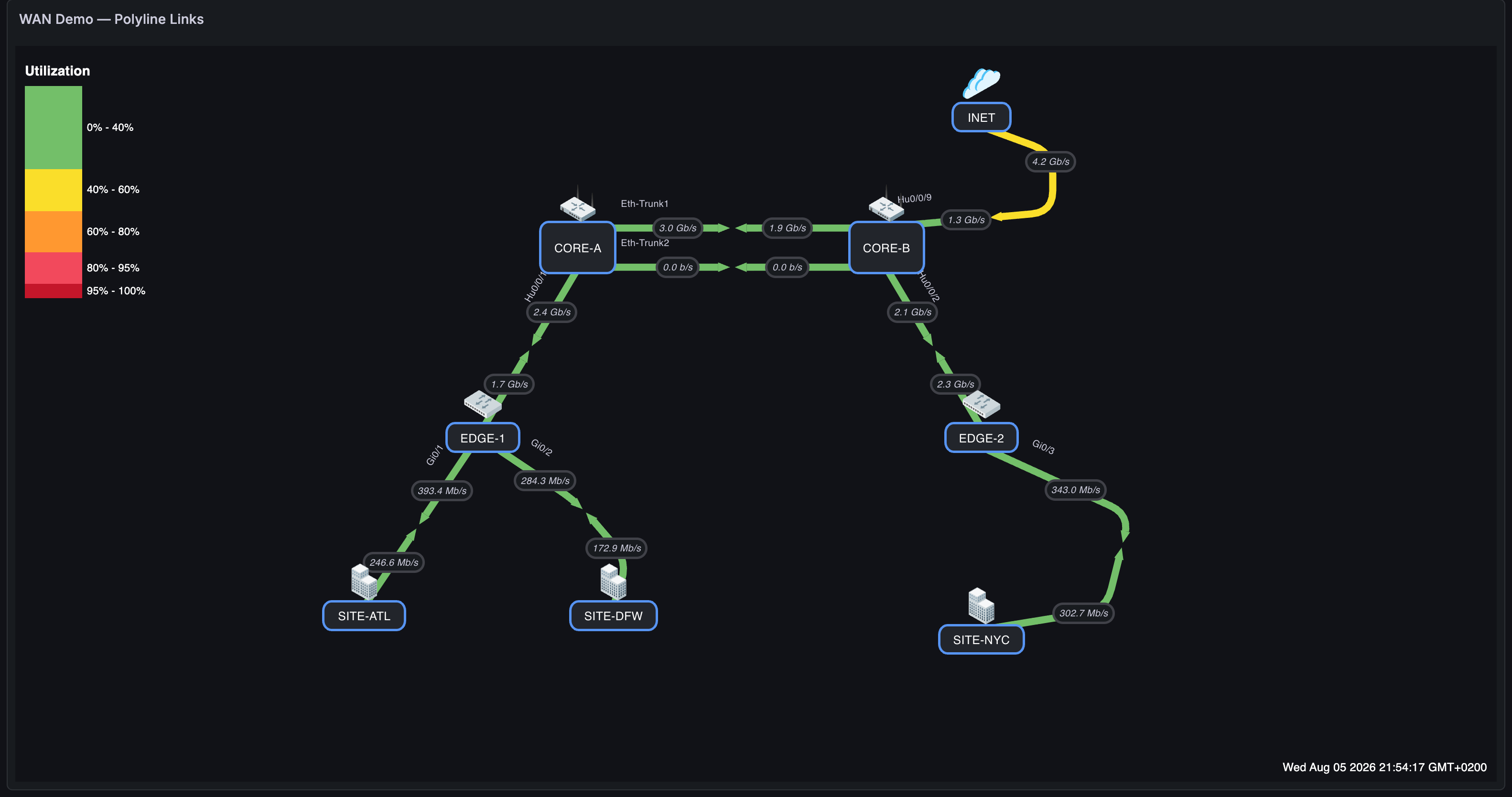

Three links routed through waypoints around the WAN map

The WAN demo with three polyline links: the DFW site link curving out to the right so it stays clear of EDGE-1's other downlink, the NYC link arced through two bends tracing a geographic-style path, and the INET uplink routed around the top-right corner — each still one logical link with its own queries, labels, and arrows. The two CORE trunks alongside them use Link Offset rather than waypoints, which is usually the right tool for a pair that shares both endpoints. Try it locally with the WAN Demo — Polyline Links dashboard in the testing environment.

Create on the canvas (edit mode): right-click anywhere on a link to insert a waypoint at that exact spot. (Double-click still inserts a VIA — the two gestures coexist.) Or use Add Waypoint in the link form, which seeds one halfway toward the Z node; each waypoint is an X/Y coordinate in panel space, ordered A → Z, editable numerically for precision.
Edit directly on the canvas (edit mode): every waypoint shows a circular drag handle — drag it to reshape the link live (grid snapping applies; the drag keeps tracking even if your cursor leaves the panel), release to save. Right-click a handle to remove that waypoint. Keyboard: focus a handle with Tab, nudge with arrow keys (Shift = 10 px), remove with Delete.
Corner Radius (shown once waypoints exist) rounds each bend with a smooth curve — 0 keeps sharp corners; the radius clamps automatically so neighboring bends never overlap.
Space your bends at least twice the Corner Radius apart. Each bend's radius is capped at half the length of the shorter adjoining segment, so two waypoints 30 px apart can only round to 15 px however high the slider goes. If a corner looks squarer than you asked for, the neighbouring bend is too close — move it out rather than raising the radius.
Everything follows the drawn path by arc length: both directional halves, the arrowheads (which rotate with the segment they sit on), the value labels, the arrow meeting point percentage, port labels, and traffic animation dots — which travel around the bends.
Link Offset (parallel links) combines with waypoints: the whole polyline shifts sideways, keeping its shape. See Parallel links.
Gradient link coloring follows the bent path too: the A→Z color ramp is measured by distance along the line as drawn, so the halfway color sits at the halfway point of the route, not of the straight A→Z axis. A link that bows well off its axis no longer squashes most of its ramp into the ends.
An empty waypoint list is exactly the old straight link, so existing maps are unchanged.

Step by step: bend a link¶

Everything below happens in edit mode (open the panel editor). Click any screenshot to enlarge it.

1. Open the link. In the panel options, under Network Weathermap NG → Links, pick the link from Select a link. Scroll down to Link Options.

2. Add the bend points. Press Add Waypoint once per bend. Each one appears as an #n X / Y coordinate pair in panel space, ordered A → Z. Type exact numbers here, or place them roughly and drag them on the canvas in step 4.

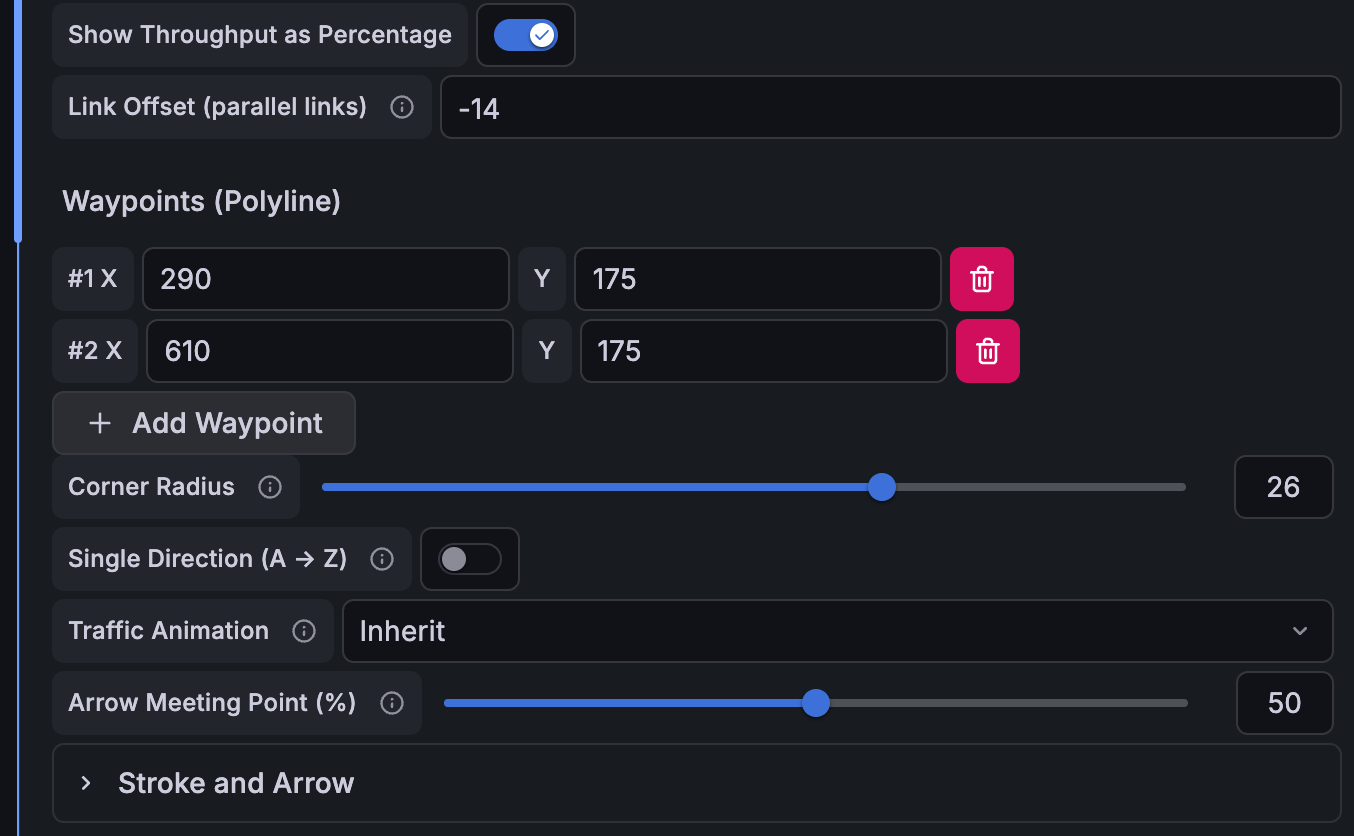

The link editor showing Link Offset, the Waypoints (Polyline) coordinate list, Add Waypoint, and the Corner Radius slider

The link form for one LAG member: Link Offset -14, two waypoints at (290, 175) and (610, 175), and Corner Radius 26. The two settings combine — this member follows the shared bent route, shifted 14 px off it.

3. Round the corners (optional). The Corner Radius slider appears as soon as the link has a waypoint. 0 keeps sharp corners; higher values curve each bend. The radius is clamped to half of each adjacent segment automatically, so neighbouring bends can never overlap however high you push it — which also means bends closer together than twice the radius round less than you asked for. For a 26 px radius like the demo below, keep consecutive waypoints (and the first/last waypoint from its node) at least ~52 px apart; if a corner comes out squarer than expected, widen the spacing instead of raising the slider.

4. Shape it on the canvas. Each waypoint draws a circular drag handle. Drag one to reshape the link live — the whole path follows as you move, and the change is saved once when you release (so it is a single undo step). Right-click a handle to delete that waypoint, or focus it with Tab and use the arrow keys (Shift = 10 px) and Delete.

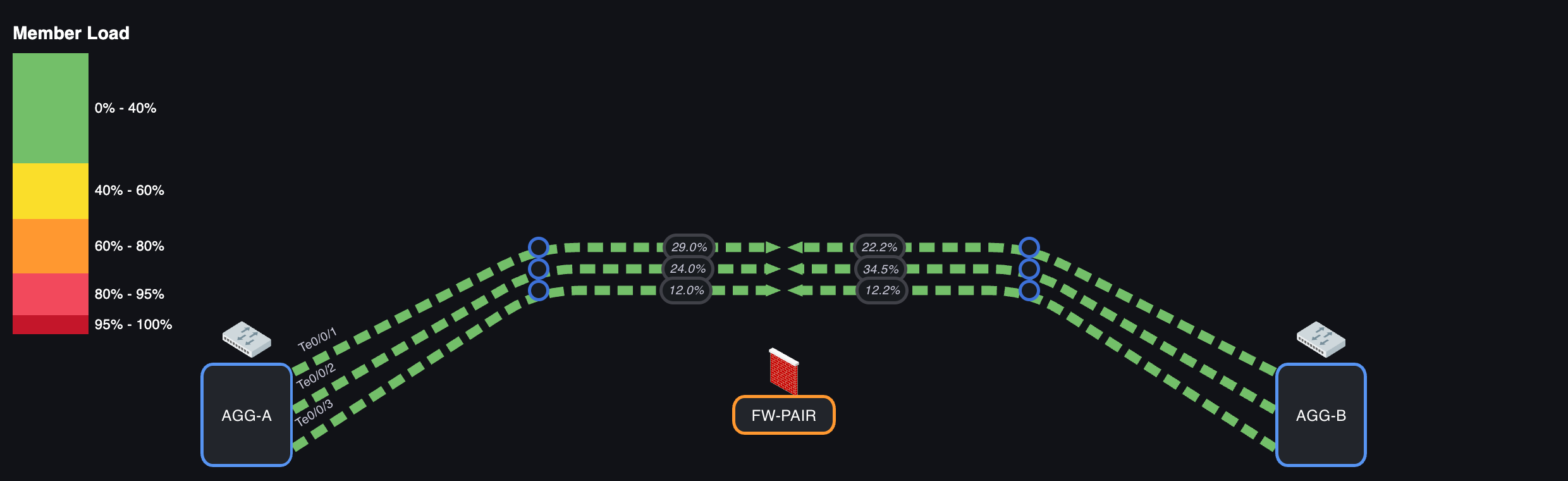

Three parallel bent links in edit mode, each waypoint showing a circular drag handle at the bend

Edit mode on the demo bundle: three drag handles at each bend, one per member. The handles sit on the line as drawn — including the Link Offset shift — while the coordinates they write back stay unshifted, so changing the offset never moves your waypoints.

5. Spread parallel links (optional). To run more than one link along the same route, give each a different Link Offset. See Parallel links below.

Adding a waypoint without the form

Right-click anywhere on a link in edit mode inserts a waypoint at that exact spot, in the right position along the path. It is the fastest way to add a bend where you want it — then drag the handle to fine-tune.

Parallel links (link offset)¶

To draw multiple links between the same two nodes without overlap, set a different Link Offset (parallel links) on each. The offset shifts the line perpendicular to its A→Z axis; arrows, labels, and coloring all follow the offset line. Zero (default) keeps the straight line.

This works on polyline links too: the entire path — bends included — shifts along that one axis, so the link keeps its exact shape and its arc length. That matters in practice, because it means every member of a parallel bundle keeps its arrows, value labels, and animation in step with the others, and a bend can never fold in on itself no matter how large the offset or how tight the corner. Waypoint coordinates are stored unshifted, so changing the offset never rewrites them — the drag handles move with the drawn line and keep editing the underlying points.

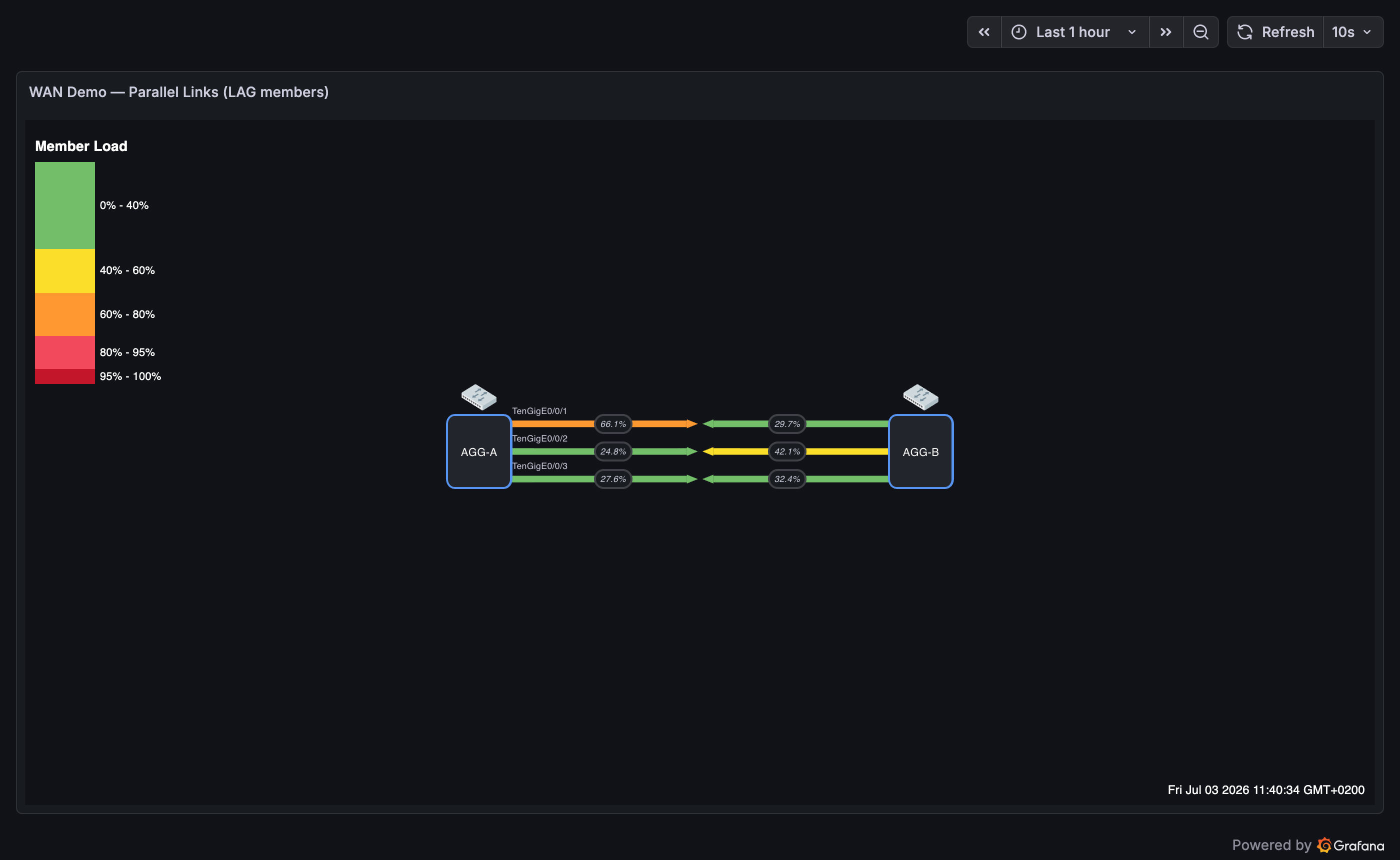

Three parallel LAG member links between the same two nodes

A three-member LAG drawn with per-link offsets — each member keeps its own query, port label, and utilization %.

A bundle on a bent route¶

The same LAG, routed around an obstruction through two shared waypoints. Each member keeps its own offset, so the three stay evenly spaced through both corners instead of converging:

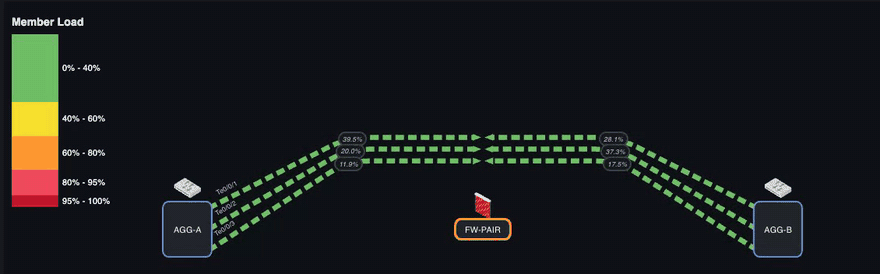

A three-member LAG bundle routed around a firewall pair through shared waypoints, animated

Link Offset -14 / 0 / +14 on three links that share the same two waypoints and a 26 px corner radius. Traffic animation follows each bent path, and because shifting a polyline preserves its length, all three members animate in step — the dashes stay aligned across the bundle the whole way round.

To build it: give each link the same waypoints and corner radius, then a different Link Offset. Because waypoints are stored unshifted, you can copy the same coordinates to every member and let the offsets do the spreading.

The demo above ships as the WAN Demo — Polyline Links + Link Offset dashboard in the testing environment.

Link status (up / down)¶

Give a link a Status Query so it can render as down:

When the status value is 0 or absent, the link uses a configurable down color and a dashed stroke.
Optional blink animation draws attention to down links.
While down, status rendering overrides gradient/flow-animation.
When traffic animation is enabled for the link, a down status also replaces the moving dots with static ✕ badges and labels both sides DOWN.

Traffic animation (per-link override)¶

When traffic animation is available, each link has a Traffic Animation control:

Value	Behavior
Inherit (default)	Follows the panel-level Enable Traffic Animation switch.
Enabled	Animates this link even when the panel switch is off.
Disabled	Never animates this link, even when the panel switch is on.

Animation uses this link's existing A/Z values and bandwidths — no extra queries. Dots move A→Z for the A-side value and Z→A for the Z-side value; speed and density scale with utilization. See Traffic Animation for the full behavior.

Add extra rows to the link's hover tooltip (errors, discards, drops, latency, …). In the link's Tooltip Extra Metrics section, Add Metric with a Label, an optional Inbound Query and Outbound Query, and a Units formatter. These rows use your direction labels when set.

Stroke and arrows¶

Under Stroke and Arrow:

Link Stroke Width — line thickness.
Arrow Width / Height / Offset — arrow geometry.
(Panel-level) Dynamic Stroke can scale stroke width with utilization, and Flow Animation can animate dashes in the direction of flow.

VIAs (waypoints)¶

A VIA is an intermediate bend point on a link — useful to route a link around obstacles or to represent a multi-hop path. VIAs use lightweight connection nodes under the hood: the link splits into real segments at each VIA, which is what you want when the bend represents an actual intermediate hop. If you only want to bend the drawn line, prefer waypoints — they keep the link as one logical unit.

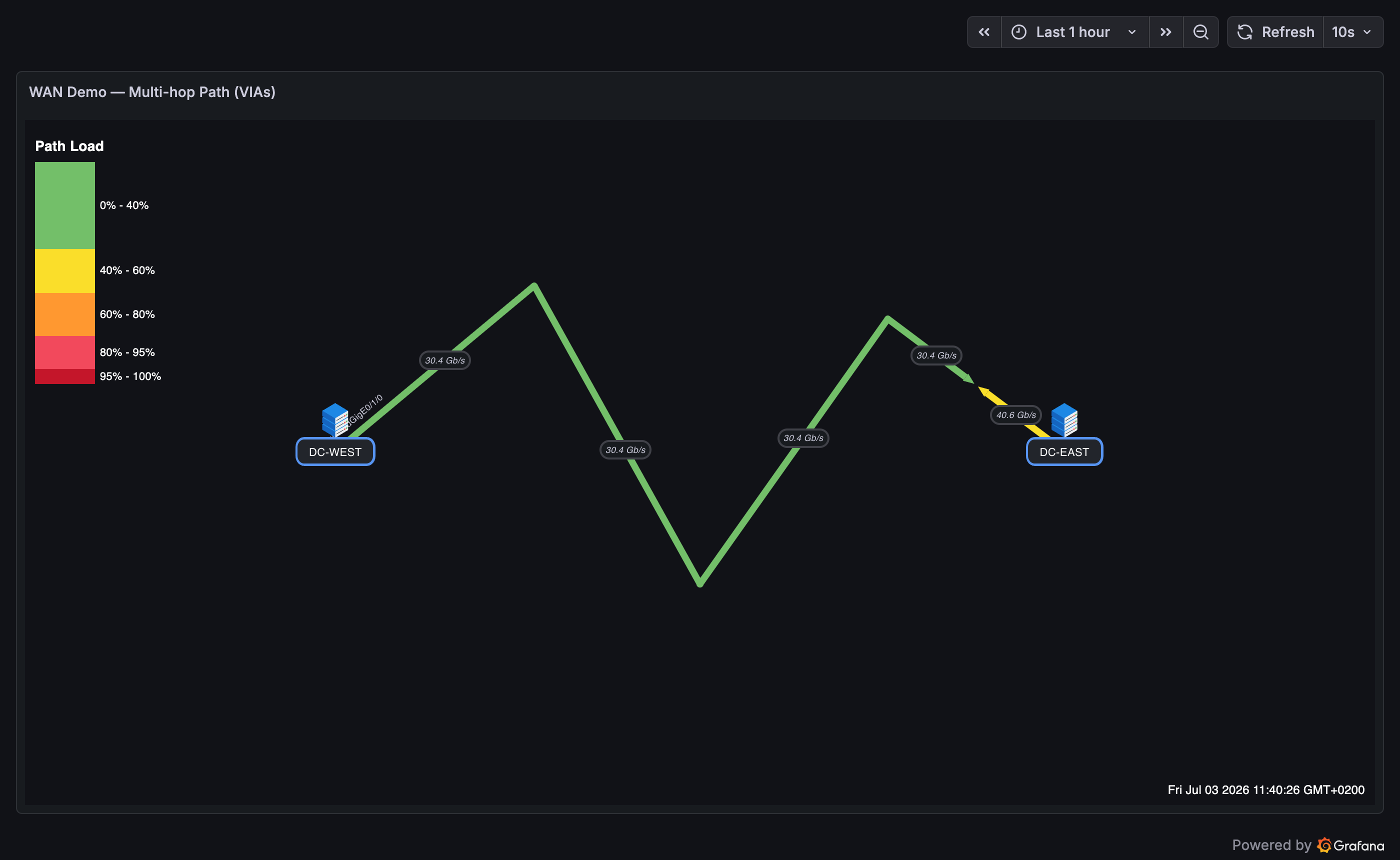

A link routed through three VIA waypoints

One DC interconnect routed through three VIAs — exactly what double-click VIA editing produces.

Edit a VIA directly on the canvas (edit mode):

Add — double-click a link. A VIA is inserted at the link midpoint (the link splits into A→C and C→Z, preserving each side's query data).
Move — drag the VIA like any node.
Delete — right-click the VIA; the two segments merge back into one link.

See Interactions & Editing for the full gesture reference.
